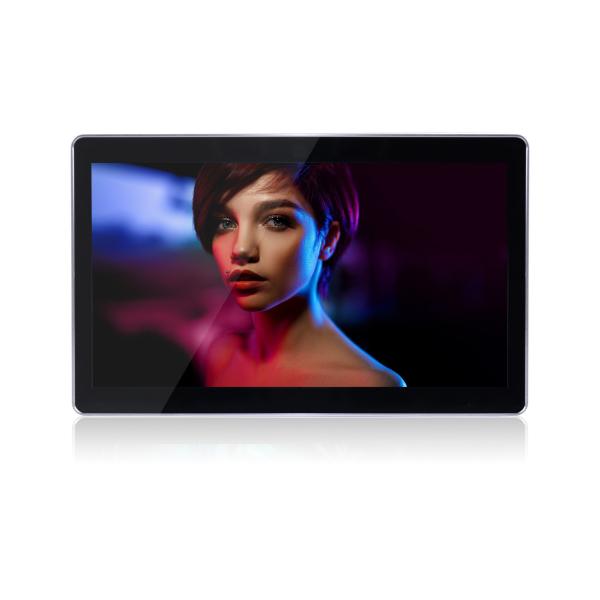

26" Metal frame industrial TFT LCD monitor advertising monitor
Features:
1. Ultra-silm design ,convenient use ,delicate appearance.
2. Industrial A+ grade LCD panle.
3. Auto eliminate blur function,long life span.
4. Auto adjust the VGA image reproduction rate.
5. Quick response time,no trailing effect.
6. Multi data-image adjustment circuit,low image distortion.
7. Wide visual angel 178 degree,aspect ratio 16:9.
8. Intelligence temperature control fan design,green and quiet.
9. High contrast,high brightness,vivid image layout ,best details
display.
10. Intensive the IR receiver,support the IR remote to modify the
monitor parameters.
11. Build-in stable power,low consumption,long life
span>60000hrs.
12. Appling the latest 3D digital image decode chipset,the latest
DNR,image clear,clean and vivid.
13. Wide voltage range,AC110-240V,Industrial grade design,can be
used in the harsh environments!
Specification:
| Model No. | US-M2601P |
| Panel size | 26" TFT-LCD |
| Display area(mm)/mode | 575.6(W)×325.6(H) 16:9 |
| Maximum resolution | 1366×768 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.1405(H)×0.4215(V) |
| Brightness (nits) | 500nits |
| Contrast | '1500:1 |
| Visual angle | 178°/178° |
| Response time | 5ms |
| Horizontal frequency | 30-75KHZ |
| Vertical frequency | 56-75KHZ |
| Life(hrs) | 60,000(hrs) |
| Input and output |
| Composite video input | 3 (BNC×3) |
| YPbPr input | 1 (BNC×3) |
| S-video-Y/C input | 2 (BNCx2) |
| VGA | 1 |
| HD | 1 |
| DVI | 1 |
| Composite video output | 2 (BNC×2) |
| Video |
| Color system | PAL/NTSC/SECAM |
| Compatible HD/DVI input | 480P,576P,720P,1080I,1080P |
| 3D Comb filter | Yes |
| Video reduction noise | Yes |
| OSD display( screen menu display) |
| Menu language | Chinese/English |
| Power |
| Power supply | AC100V~240V,50/60Hz |
| Maximum power consumption | <80W |
| Standby power consumption | 3W |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -20°C~60°C |
| Working humidity | 10%~90% |
| Storage humidity | 10%~90% |
| Appearance |
| Body dimension(Lx W x H)mm | 639.6×393.0×110mm |
| Panel color/appearance | White,black,customized |
| Case Material | Metal |
| Net weight | 15kg |
| Installation | Wall-mounted,desktop(optional) |
Product details show:
