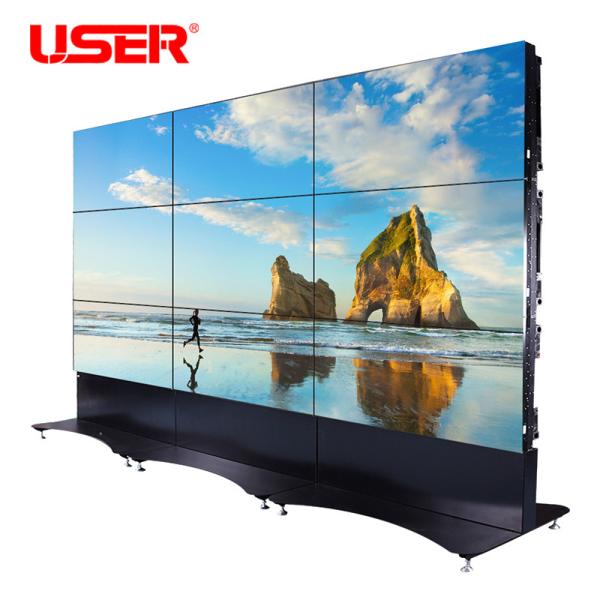

    Full Screen Commercial Multi Screen Display Wall Digital Video Wall

    Ask Lasest Price
    Brand Name : USER(OEM)
    Model Number : US-PJ4604
    Price : Negotiation
    Delivery Time : 3-8 working days after delivery
    Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week
    • Product Details
    • Company Profile

    Full Screen Commercial Multi Screen Display Wall Digital Video Wall

    ultra narrow bezel 46 inch lcd video wall,big advertising screen

    Product Description

    Product Description for ultra narrow bezel 46 inch lcd video wall,big advertising screen

    Features:

    1. Ultra-narrow border design of the current width of only 2.65mm at present

    2. Full-screen high definition display, up to 1080P

    3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone

    4. DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.

    5. Long life, stable operation, no burns, injuries, low maintenance costs

    A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.

    6. Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.


    LCD Video Wall Screen (SAMSUNG DID)
    Specifications
    Model No.US-PJ4604
    Panel Size46'' Samsung DID LCD Screen(super narrow bezel 5.3mm with LED Backlight)
    Aspect Ratio16:9
    Max Resolution Support1920x1080
    Color8Bit,16.7M
    Brightness (nits)700cd/m2
    Contrast3000:1
    Visual Angle (H/V)178°
    Response Time<=6ms
    Life(hrs)>60,000(hrs)
    Input and output
    DVI1
    HD1
    D-15 RGB Input(VGA)1
    YUV/YPbPR1(3xBNC)
    S-(YC)1(2xBNC)
    Composite Video Input/(AV)3(3xBNC)
    Composite Video Output2(2xBNC)
    AUDIO INPUT1
    Split ScreenSupport Picture in Picture(PIP/POP/PAP)
    Power
    Power SupplyAC100V~240V
    Maximum Power Consumption250W
    Standby Power Consumption<=3W
    Temperature
    Working Temperature0°C~50°C
    Working Humidity20%-80%
    Dimension1025.65x579.84x105mm
    Video Wall Controller(Built-in each Screen)
    Model No.US-P817W
    InputCVBS1*BNC port, support PAL/NTSC all formats
    DVI1*DVI-I port, support SVGA/XGA/WUXGA
    VGA1*D15 port, support SVGA/XGA/WXGA
    HD5*BNC ports, support SVGA/XGA/WUXGA
    OutputLVDSSupport signal or double LVDS output, and WUXGA (1920*1080) display
    CVBSsupport PAL/NTSC all formats
    DVI1*DVI-I port, support SVGA/XGA/WUXGA
    Operate modePanel key operation(needs customization)
    Standard RS232 port( provide free control software)
    ADD Code
    Engineering softwareXK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
    Working temperature0~70 °C
    working humidity5~95 %RH
    AC voltage power supply100-240V/50, 60Hz
    power consumptionMax 300W,according to different Screen models
    Dimension307×283×55(mm)
    WeightAbout 3.5KG
