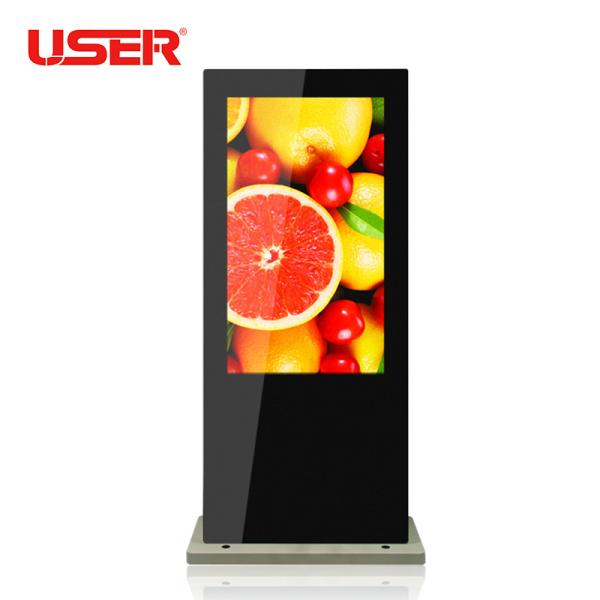

LCD advertising player/digital signage/display totem
| Specification model | US-AD550LD |
| Panel size | 55″TFT-LCD |
| Display area(mm)/mode | 16:9 |
| Maximum resolution | 1920*1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.4845H)×0.4845 (V) |
| Brightness (nits) | 500cd/m2 |
| Contrast | 5000:1 |
| Visual angle | H178º V178º |
| Response time | 8ms |
| Life(hrs) | >60,000(hrs) |
| Input and output | |
| Composite video input | 1 (BNC X 3) |
| Y,Pb,Pr/Y,Cb,Cr input | 1 (BNC X 3) |
| S-video | 1 (BNC X 2) |
| HD | 1 |
| Composite video loop output | 1 |
| L/R audio input | 1 ( RCA * 2) |
| L/R audio output | 1 ( RCA * 2) |
| Speaker | 2×5W(8Ω) |
| Video | |
| Color system | PAL/NTSC/SECAM |
| Remote controller | Special |
| Ads input interfaces | |
| USB | 1 ( USB2.0 interface) |
| SD | 1 (Compatible MMC/MS) |
| CF | 1 |
| OSD display( screen menu display) | |
| Menu language | Chinese/English( multiple language option required) |
| Power | |
| Power supply | AC100~240V 50 /60 HZ |
| Maximum power consumption | ≤720W |
| Standby power consumption | ≤23W |
| Temperature | |
| Working temperature | 0°C~50°C |
| Storage temperature | -20°C~60°C |
| Working humidity | | | 85% | | | |
| Storage humidity | | | 85% | | | |
| Appearance | |
| Body dimension(Lx W x H)mm | 1249.6×739.2×122.5 (just for reference) |
| Panel color/appearance | White, black, customized |
| Panel material | Metal case SPCC |
| Installation | rack-mounted,floor stand,wall mounted |
| Payment terms | |
| price | USD/pcs ( FOB shenzhen) |
| Payment | TT / Western union |
| Detailed functions | |
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format | Wave/MP3/WMA/AAC |
| Image format | JPEG/BMP/TIFF/PNG/GIF |
| Image resolution | 480P/720P |
| Play mode | Power on, single card auto loop play;classified files auto
loop play; multi cards auto loop display etc |
| Time | year/month/day/week/h/m/s, in the top right corner (open and close
optional) |
| Timing open & close | Per day 5 times, 7 days a week, free time |
| Timing play | 7 days a week, free set the play program everyday |
| Alarm clock | Set 5 alarms one day, once ring the alarm, play the specified
program |
| OTG | Support copy, delete, remove, rename, build new file among
different cards |
| Running subtitle | Can set the play location, word size, color and back-color |
| Log files | Record the play time (concise to second), the play contents |
| Angle subscript display function | Can set the play time, just support BMP picture with biggest
resolution 160*90 |
| Memory function | Power off, memory the time of the play; power on, play from the
time, not from beginning |
| Key and lock function | Use the remote controller before input the keyword |
| Encrypt CF card | Play the contents in the CF card before input the keyword |
| Sound volume | Can set the volume of sound in the different time |
| Storage card lock | Have a anti-theft lock in the case, equip 2 sets key |
| Other function | Customized |
| Upgrade software | Just put the upgrade file in the storage cards |
Applicable field:
1.Business Organizations: supermarket, large-scale shopping malls,
exclusive agency, chain shops, large-scale sales, star-rated
hotels, restaurants, travel
agencies, pharmacy. Department store,
2.Financial Organizations: Banks, negotiable securities, funds,
insurance companies, pawnshops;
3.Non-profit Organizations: Telecommunications, post offices,
Hospital information center , Education system;
4.Public Places: subway, airports, stations, gas stations, toll
stations, bookstores, parks, exhibition halls, stadiums, museums,
convention centers, ticket
agencies, HR market, lottery centers; Communication center, Traffic
control center,
5.Real Estate Property: Apartments, villas, offices, commercial
buildings, model rooms, property brokers; Warehouse,Conference
Center
6.Entertainments: Movie theaters, fitness halls, country clubs,
clubs, massage rooms, bars, cafes, Internet bars, beauty shops,
golf cours,
Advantage:
1) Good service and honesty based;
2) Experienced R&D Department;
3) Buyer's Specifications Accepted;
4) OEM and ODM Production Capability;
5) Reliability;
6)Speedy shipment: sample shipment within 3 working days after
receipt of your payment.
Warranty:
1 year free warranty
Our Service
1, Reply your inquiry in 24 working hours .
2, Experienced staffs answer all your questions in fluent English .
3, Customized requirment is available , OEM&ODM are welcome.
4, Exclusive and unique solution can be provided to our customer by
our well-trained and professional engineers and staffs.
5, Special discount and protection of sales area provided to our
distributor.
Company and products information related
Established in 2003, Shenzhen User Special Display Technologies
Co., Ltd is a high tech enterprise, specializing in development,
production and marketing of
special displays. The company can customize special displays of
5~82 inches according to customer need.
As one of the leading providers of special display solutions, USER
always stands on the forefront of the special displays development.
Its products are
divided into several series:LCD video wall, CCTV LCD monitor,LCD
advertising player,digital signage ,electronic
whiteboard,Multimedia kiosk,Industrial LCD
monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen
LCD monitor, large size high definition data LCD display, video
wall processor,and so on.
