lcd wall design 40~82 inch

    Buy cheap lcd wall design 40~82 inch from wholesalers

    Buy cheap lcd wall design 40~82 inch from wholesalers
    • Buy cheap lcd wall design 40~82 inch from wholesalers

    lcd wall design 40~82 inch

    Ask Lasest Price
    Brand Name : USER(or OEM)
    Model Number : US-LTI400HM03
    Price : Negotiation
    Delivery Time : 3-8 working days after delivery
    Payment Terms : T/T,L/C,Western Union,Paypal and MoneyGram
    Supply Ability : 1000 Piece/Pieces per Week
    • Product Details
    • Company Profile

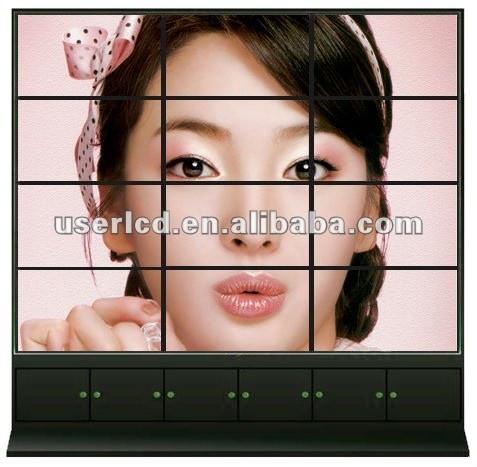

    lcd wall design 40~82 inch

    lcd wall design 40~82 inch

    Features:

    1. Ultra-narrow border design of the current width of only 11mm at present

    2. Full-screen high definition display, up to 1080P

    3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone

    4. DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.

    5. Long life, stable operation, no burns, injuries, low maintenance costs

    A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.

    6.Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.




    LCD Video Wall Solution
    LCD Video Wall Screen (SAMSUNG DID)
    Specifications
    Model No.US-LTI400HM03
    Panel Size40" Samsung DID LCD Screen(with narrow bezel 20mm)
    Aspect Ratio16:9
    Max Resolution Support1920x1080
    Color8Bit,16.7M
    Brightness (nits)700cd/m2
    Contrast3000:1
    Visual Angle (H/V)178°
    Response Time<=6ms
    Life(hrs)>60,000(hrs)
    Input and output
    DVI1
    HD1
    D-15 RGB Input(VGA)1
    YUV/YPbPR1(3xBNC)
    S-(YC)1(2xBNC)
    Composite Video Input/(AV)3(3xBNC)
    Composite Video Output2(2xBNC)
    AUDIO INPUT1
    Split ScreenSupport Picture in Picture(PIP/POP/PAP)
    Power
    Power SupplyAC100V~240V
    Maximum Power Consumption250W
    Standby Power Consumption<=3W
    Temperature
    Working Temperature0°C~50°C
    Working Humidity20%-80%
    Dimension911.7X524.2X128mm

    Video Wall Controller(Built-in each Screen)
    Model No.US-P816A
    InputCVBS3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
    VGA1*D15 port, support SVGA/XGA/WXGA
    YPbPr/YCbCr

    1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I,

    HDTV

    Y/C2*BNC inputs, support PAL/NTSC all formats
    OutputLVDS

    Support signal or double LVDS output, and WUXGA (1920*1080)

    display

    Operate modePanel key operation(needs customization)
    Standard RS232 port( provide free control software)
    Infrared Remote Control Operation
    Engineering softwareCustomized
    Working temperature0~70 °C
    working humidity5~95 %RH
    AC voltage power supply100-240V/50, 60Hz
    power consumptionMax 300W,according to different Screen models
    Dimension338×295×60(mm)
    WeightAbout 3.5KG

    .jpg
