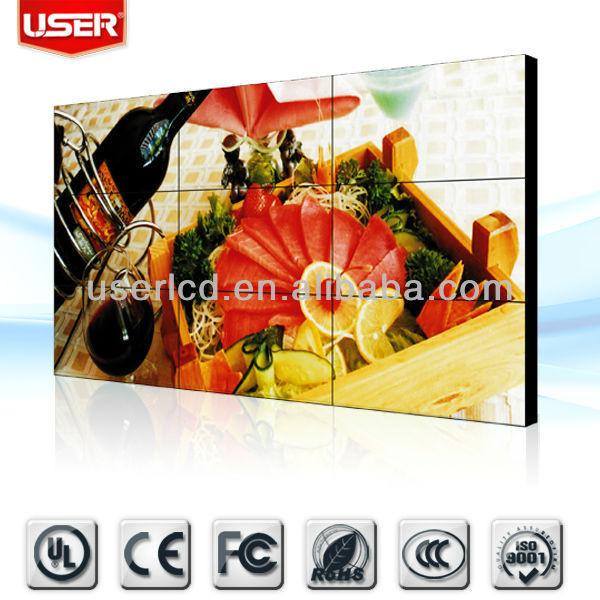

6.7mm Ultra-narrow bezel multiscreen display wall
Features:
1. Ultra-narrow border design of the current width of only 3.35mm
at present
2. Full-screen high definition display, up to 1080P
3. Unique cell-based, modular design, Which can splice as a liquid
crystal wall can also be used alone
4. DID using Samsungs proprietary LCD screen is completely
different from the normal LCD screen, display long-life, high
stability, and focus on the special display.
5. Long life, stable operation, no burns, injuries, low maintenance
costs
A wealth of input and output interface, VGA, DVI, YPbPr, Av
interface terminal, can be accessed by computers and a variety of
video equipment.
6.Brand-new ultra-wide viewing angle technology
extended(S-PVAS-IPS), ensure that 178-degree viewing angle both
vertical and horizontally within the image to watch the
non-deformation, color without distortion.
| LCD Video Wall Screen (SAMSUNG DID panel) |
| Specifications |
| Model No. | US-LTI460AA05 |
| Panel Size | 46'' Samsung DID LCD Screen(super narrow bezel 6.7mm) |
| Aspect Ratio | 16:9 |
| Max Resolution Support | 1366x768 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 450cd/m2 |
| Contrast | 3000:1 |
| Visual Angle (H/V) | 178° |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Input and output |
| DVI | 1 |
| HDMI | 1 |
| D-15 RGB Input(VGA) | 1 |
| YUV/YPbPR | 1(3xBNC) |
| S-(YC) | 1(2xBNC) |
| Composite Video Input/(AV) | 3(3xBNC) |
| Composite Video Output | 2(2xBNC) |
| AUDIO INPUT | 1 |
| Split Screen | Support Picture in Picture(PIP/POP/PAP) |
| Power |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 250W |
| Standby Power Consumption | <=3W |
| Temperature |
| Working Temperature | 0°C~50°C |
| Working Humidity | 20%-80% |
| Dimension | 1025.65x579.84x126.73mm |
| Video Wall Controller(Built-in each Screen) |
| Model No. | US-P817W |
| Input | CVBS | 1*BNC port, support PAL/NTSC all formats |
| DVI | 1*DVI-I port, support SVGA/XGA/WUXGA |
| VGA | 1*D15 port, support SVGA/XGA/WXGA |
| HDMI | 5*BNC ports, support SVGA/XGA/WUXGA |
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display |
| CVBS | support PAL/NTSC all formats |
| DVI | 1*DVI-I port, support SVGA/XGA/WUXGA |
| Operate mode | Panel key operation(needs customization) |
| Standard RS232 port( provide free control software) |
| ADD Code |
| Engineering software | XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out) |
| Working temperature | 0~70 °C |
| working humidity | 5~95 %RH |
| AC voltage power supply | 100-240V/50, 60Hz |
| power consumption | Max 300W,according to different Screen models |
| Dimension | 307×283×55(mm) |
| Weight | About 3.5KG |
